Default 2002 Ford Taurus Dashboard Lights Out

Hello,

I have a 2002 Ford Taurus, and the lights that light up the dashboard speedometer, rpm gauge, and odometer don't come on when I turn on the lights in the car. The surrounding warnings and indicators light up just fine.

We've tried looking in the manual for what a fuse does and then pulling it, testing it with a multimeter, and didn't find anything that way; but we didn't try all the fuses and the car's documentation is a bit arcane.

Do you know which fuses we should check before we rule this as a burnt-old old-school-Edison light bulb?

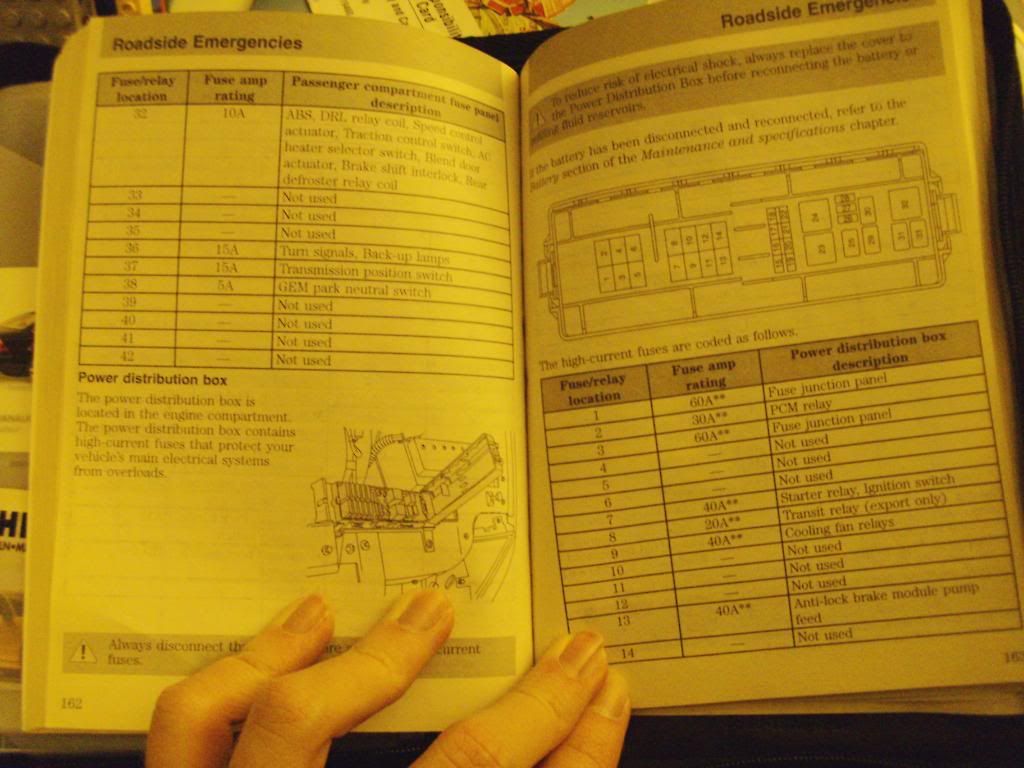

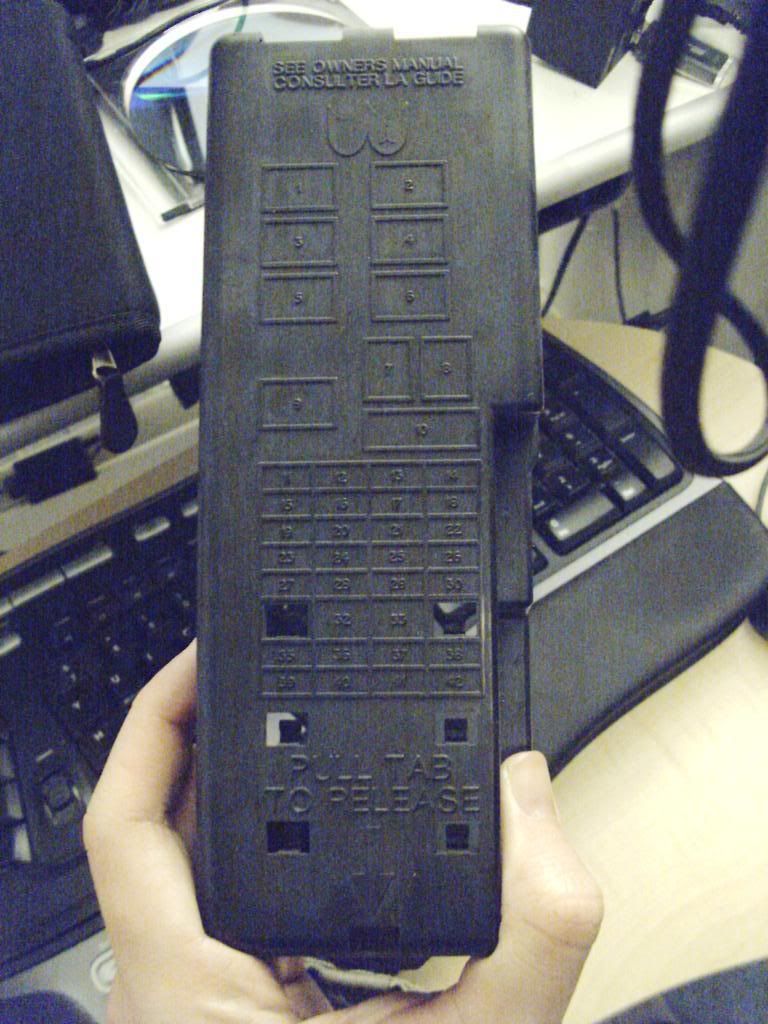

Here are a few photo's of my manual, and the casing to my car's fusebox:









Note also that the problem is not the dimmer, I've already tried that.

Last edited by leeand00; 11-19-2011 at 05:00 PM.
leeand00 is offline   Reply With Quote
